| Brand Name: | Kemaisi |
| Model Number: | KMS-Y7503 |
| MOQ: | 1 pcs |
| Price: | USD560-USD1100 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

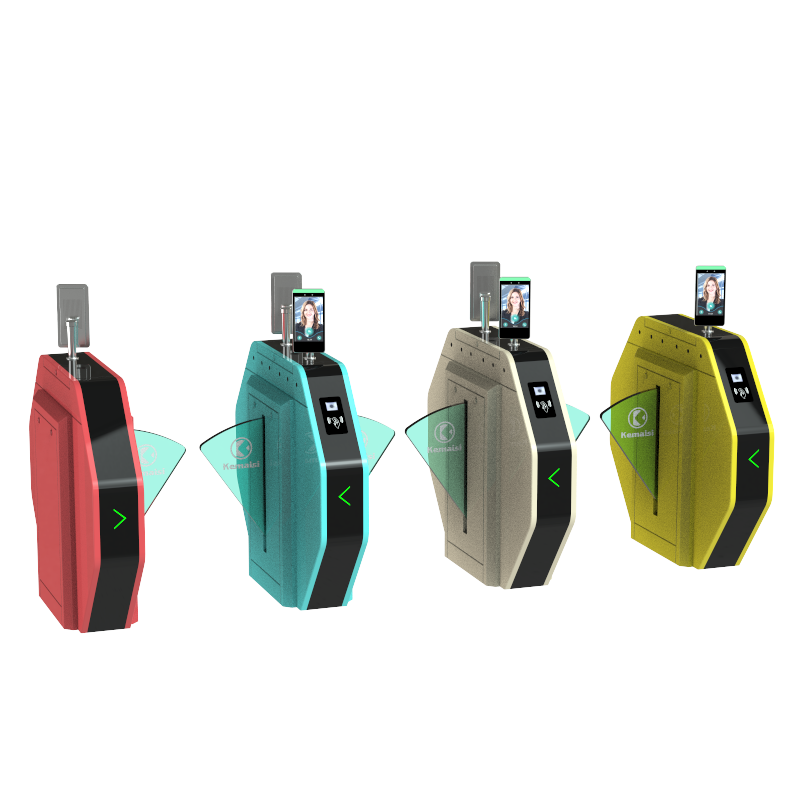

This wing barrier is a fast passage access control turnstile engineered for offices, metro stations, gyms and commercial buildings where large numbers of pedestrians need to pass through quickly and smoothly. The high speed drive system delivers an opening time of only 0.5 seconds and a traffic speed of 30 people per minute, or 40 people per minute in normally open mode, so peak hour queues are greatly reduced. It supports multiple identification methods including face recognition, RFID/IC/ID cards, QR codes and NFC, allowing employees and visitors to pass without slowing down the flow. The barrier integrates mechanical, electronic and microprocessor control and is compatible with attendance and access control software, so passage data and clock in records are captured automatically and hands free. Six pairs of infrared sensors detect pedestrians precisely, while the anti pinch function and automatic reset keep fast passage safe and orderly even at the busiest times.
The high speed brushless drive opens the wings in only 0.5 seconds, allowing each pedestrian to pass almost instantly and keeping the entrance flowing at all times.
The barrier handles 30 people per minute in normal mode and up to 40 people per minute in normally open mode, making it ideal for rush hour pedestrian flow in offices and public buildings.
During peak hours the normally open mode keeps the wings open and only closes when an unauthorised person appears, which dramatically speeds up continuous pedestrian passage.
Face recognition, RFID/IC/ID cards, QR codes and NFC are all supported, so users can choose the fastest verification method and pass without delays or queuing.
When connected to attendance or access control software, every passage is recorded automatically, enabling hands free, non stop entry and exit for employees while keeping management data up to date.
Six pairs of high precision infrared sensors monitor the channel in real time, detecting pedestrians quickly and accurately so the gate responds immediately for smooth and safe passage.
The durable 304 stainless steel frame and a service life of more than 5 million operations ensure the fast passage barrier maintains consistent, reliable performance under high frequency use.
| Product Name | Wing Gate |
| Barrier Material | Acrylic Swing Arm |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1200mm*300mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-600mm |
| Weight | 50-85KG |
| LED indicator | 2 pieces |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 100W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Infrared Sensor | 6 Pairs |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
The opening time is only 0.5 seconds, and the traffic speed reaches 30 people per minute, or 40 people per minute in normally open mode, making it ideal for high traffic entrances.
In normally open mode the wings stay open for continuous passage and only close when an unauthorised person is detected, which greatly speeds up pedestrian flow during peak hours.
Face recognition, NFC and QR code are the fastest options, while RFID/IC/ID cards are also supported. Users can select the method that best fits their access habits.
Yes. When integrated with attendance or access control software, every passage is recorded automatically, so employees can clock in and out hands free without slowing the flow.
Yes. Six pairs of infrared sensors detect pedestrians precisely, and the anti pinch swing arm rebounds with a force not exceeding 2 kg, so fast passage remains safe and orderly.
Yes. The standard channel width is 550-600mm and both the channel width and product size can be customized to suit your entrance and traffic requirements.
Looking for a fast passage wing barrier turnstile supplier for your project? Contact us today for competitive factory pricing, product specifications, customized solutions, installation guidance and technical support.
