| Brand Name: | Kemaisi |
| Model Number: | KMS-Y7517 |
| MOQ: | 1 pcs |
| Price: | USD920-USD2000 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

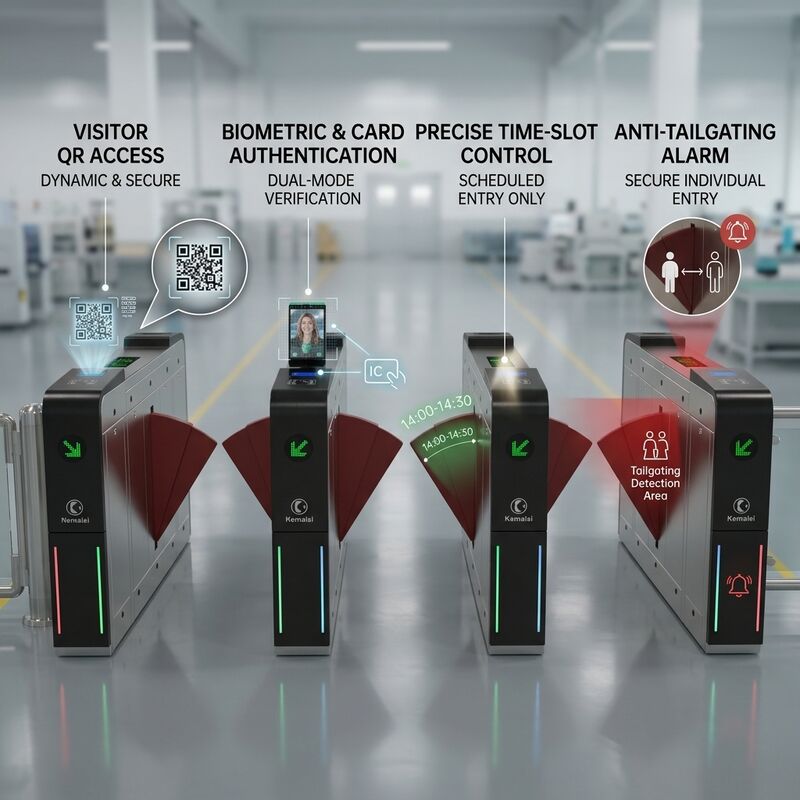

This wing barrier is a visitor management access control turnstile designed for office buildings, technology companies, high end clubs and commercial entrances that need a professional and secure visitor process. Traditional visitor management relies on manual registration at the reception desk, which is inefficient and leaves an unprofessional impression, while temporary visitor cards can be lost or copied. This intelligent turnstile solves these problems completely: visitors make an online reservation and receive a dynamic QR code, then scan the code to pass through in a fully paperless process. Permissions are granted strictly according to the reserved time slot and expired codes become invalid automatically, so visitor access is precise and secure. The barrier also supports facial recognition and card swiping, allowing employees and visitors to pass without carrying any card, and it integrates with access control and visitor management software for centralised control.
Visitors make an online reservation and receive a dynamic QR code, then scan the code to pass, achieving one person per code and eliminating manual reception desk registration.
The entire visitor process is paperless, which improves efficiency and leaves a modern, professional impression on every guest visiting the building.
Access permission is granted strictly according to the reserved time slot and expired codes become invalid automatically, so unauthorised or overdue visits are reliably rejected.
Facial recognition, card swiping and QR code can be used in combination or standalone. Employees pass by face without carrying a card, while visitors pass by scanning a code, meeting different scenarios.
The fault self diagnosis and audible and visual alarm system accurately detects unauthorised entry and tailgating, effectively enhancing visitor passage security and simplifying maintenance.
If no passage occurs within 10 seconds after the gate opens, the system automatically cancels the current permission and closes the gate, preventing tailgating and improving passage turnover efficiency.
In an emergency power failure the turnstile triggers fire mode, sounds an audible and visual alarm and immediately opens the gate, ensuring rapid evacuation and compliance with fire safety regulations.
| Product Name | Wing Gate |
| Barrier Material | Acrylic Swing Arm |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1500mm*300mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-600mm |
| Weight | 50-85KG |
| LED indicator | 2 pieces |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 100W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Infrared Sensor | 6 Pairs |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
Visitors make an online reservation and receive a dynamic QR code, then scan the code at the turnstile to pass. The process is paperless and permissions are controlled by the reserved time slot.
The dynamic QR code is a one person one code credential that changes for each visit and becomes invalid once expired, so it cannot be easily copied or reused for unauthorised entry.
Yes. Employees can pass by facial recognition or card while visitors pass by QR code or facial recognition, so the same barrier serves both groups with different permission levels.
Yes. Six pairs of infrared sensors and the alarm system detect tailgating and unauthorised entry, and the gate auto resets after 10 seconds to prevent ineffective passage.
The turnstile automatically triggers fire mode, sounds the alarm and opens the gate immediately, ensuring rapid and safe evacuation in compliance with fire safety regulations.
Yes. The turnstile supports integration with most third-party access control, visitor and attendance management systems through relay, 12V level and RS485 or TCP/IP interfaces.
Looking for a reliable visitor management wing barrier turnstile supplier for your project? Contact us today for competitive factory pricing, product specifications, customized solutions, installation guidance and technical support.
