| Brand Name: | Kemaisi |
| Model Number: | KMS-Y7525 |
| MOQ: | 1 pcs |
| Price: | USD650-USD1300 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

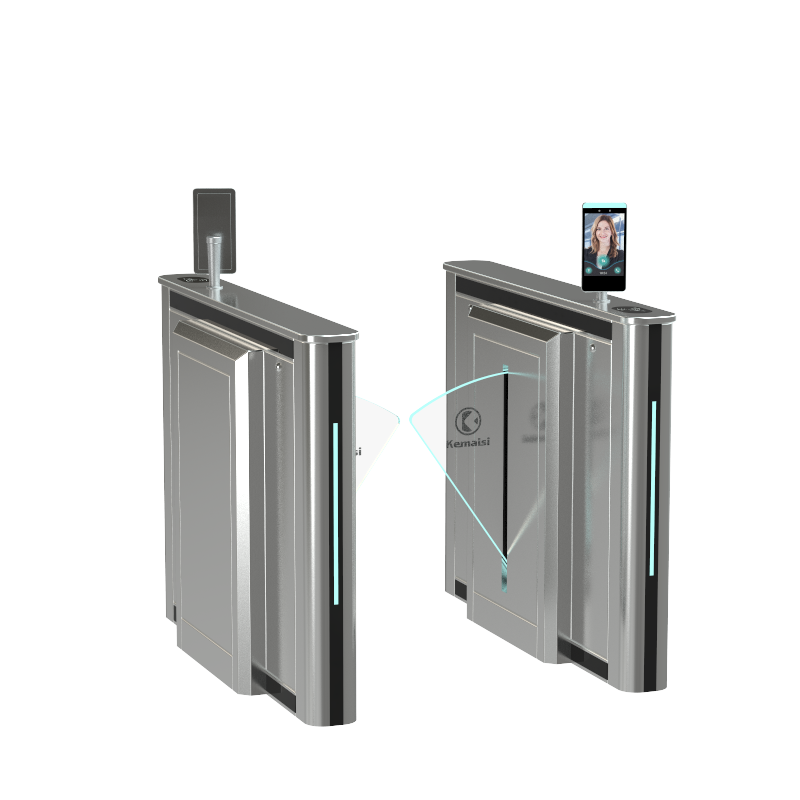

This wing barrier is an entrance access control turnstile designed for office buildings, gyms, schools and public facilities that require reliable and efficient entrance passage management. The turnstile controls entry with a 0.5 second opening time and a traffic speed of 30 people per minute, or 40 people per minute in normally open mode, so crowds at the entrance flow through quickly without queuing. It integrates mechanical, electronic and microprocessor control with multiple identification technologies including facial recognition, RFID/IC/ID cards, QR codes, NFC and fingerprint, and it can be connected to access control and attendance platforms so that only authorised persons pass. Six pairs of infrared sensors detect pedestrians precisely and the gentle anti pinch swing arm keeps every entrance passage safe. The unit automatically opens on power failure for rapid evacuation, making it a complete and dependable entrance access solution.
The high speed drive opens the wings in only 0.5 seconds, so each person enters almost instantly and the entrance keeps a smooth, continuous flow even at busy times.
The barrier grants entry only after identity verification and rejects unauthorised or expired permissions, ensuring that every person who enters the building is properly authorised.
Face recognition, RFID/IC/ID cards, QR codes, NFC and fingerprint are all supported, so employees and visitors can enter using the method that is fastest and most convenient for them.
Six pairs of high precision infrared sensors monitor the entrance channel in real time and prevent the wings from closing on people, keeping entrance passage safe for children and the elderly.
The turnstile handles 30 people per minute in normal mode and up to 40 people per minute in normally open mode, making it ideal for entrances with frequent pedestrian movement.
With relay, 12V level and RS485 or TCP/IP interfaces, the barrier connects easily to access control, attendance and visitor systems, enabling centralised and automated entrance management.
In the event of a power outage the turnstile triggers the fire alarm and opens the gate immediately, ensuring rapid evacuation of people and full compliance with fire safety regulations.
| Product Name | Wing Gate |
| Barrier Material | Acrylic Swing Arm |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1400mm*300mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-600mm |
| Weight | 50-85KG |
| LED indicator | 2 pieces |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 100W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Infrared Sensor | 6 Pairs |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
The opening time is 0.5 seconds and the traffic speed is 30 people per minute, or 40 people per minute in normally open mode, so the entrance stays smooth and queue free.
Entry is granted only after identity verification. Unauthorised or expired permissions are rejected, and the barrier can connect to access control software for centralised management.
Face recognition, RFID/IC/ID cards, QR codes, NFC and fingerprint are all supported, allowing employees and visitors to enter with the method that suits them best.
Yes. Six pairs of infrared sensors detect pedestrians precisely and the anti pinch swing arm rebounds with a force not exceeding 2 kg, so entrance passage stays safe and orderly.
The turnstile automatically triggers the fire alarm and opens the gate immediately, ensuring rapid and safe evacuation in compliance with fire safety regulations.
Yes. The standard channel width is 550-600mm and both the channel width and the product size can be customized to suit your entrance layout and traffic requirements.
Looking for a reliable entrance access wing barrier turnstile supplier for your project? Contact us today for competitive factory pricing, product specifications, customized solutions, installation guidance and technical support.
