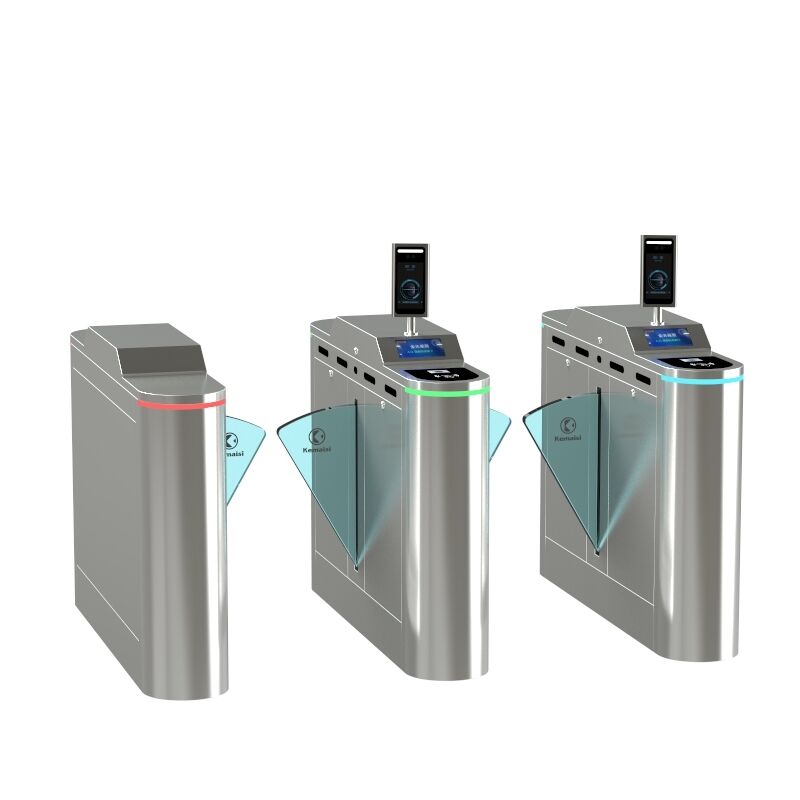

Wing Barrier Turnstile Gate Outdoor Entrance IP54 Weatherproof Residential Site Access

Product Introduction

This Wing Barrier Turnstile Gate is built for outdoor entrances that face rain, dust and direct sun. The passage frame in 304 stainless steel with IP43/IP54 protection keeps the drive and electronics running from -30C to 70C, so lanes stay open on residential community gates, industrial park walkways and outdoor ticket entrances all year round. The acrylic wing opens in 0.5 seconds and closes behind each person for 30 to 40 people per minute, six pairs of infrared sensors block tailgating and prevent the wing from closing on a person, and power failure fire mode opens the lane automatically for safe evacuation.

Product Advantages

• IP54 Outdoor Protection - IP43/IP54 rated passage frame shields the drive and control board from rain, splash and dust at open air entrances.
• -30C to 70C Working Range - Stable operation from freezing northern winters to hot summer sites, no heating or extra housing needed.
• SUS304 Anti Rust Frame - 304 stainless steel passage frame with baked paint option resists corrosion and keeps a clean finish outdoors.
• 0.5s Fast Opening - Brushless drive opens the acrylic wing in 0.5 seconds for 30-40 people per minute per lane at busy outdoor gates.
• Anti Tailgating Infrared Sensors - 6 pairs of infrared sensors with audible and visual alarms stop follow-in and wing-on-person collisions.
• Power Failure Fire Mode - The wing opens automatically with an alarm on power loss, meeting outdoor evacuation and fire safety needs.
• Multi Reader Ready - Face, RFID/IC/ID card, QR code, fingerprint, NFC and remote opening supported, with relay and RS485/TCP/IP output.

FAQ

Q1: What is the minimum order quantity (MOQ)?
A: 1 piece, and sample orders are welcome.

Q2: Can it be installed outdoors?
A: Yes. The gate is rated IP43/IP54 for indoor and outdoor use, works from -30C to 70C, and the 304 stainless steel frame resists rain and rust.

Q3: How is the gate fixed to the ground?
A: Each pillar is anchored to a level concrete base with expansion bolts; we supply the base drawing before shipment.

Q4: What is the delivery time?
A: Stock units ship within 7-15 working days in export-grade wooden cases with foam protection; customized frames are also available.

Q5: Can the size, finish and reader be customized?
A: Yes, channel width, frame finish, logo and access control modules support OEM/ODM customization.

Q6: What kind of warranty is provided?
A: 12 month warranty with spare parts support, and CE / RoHS certification is supplied.

Contact us for a fast quotation and an outdoor entrance lane layout for your site.
