Playground Entrance Swing Gate Turnstile 1200mm 304 Stainless Steel Acrylic Arm Quick Passage

Product Introduction

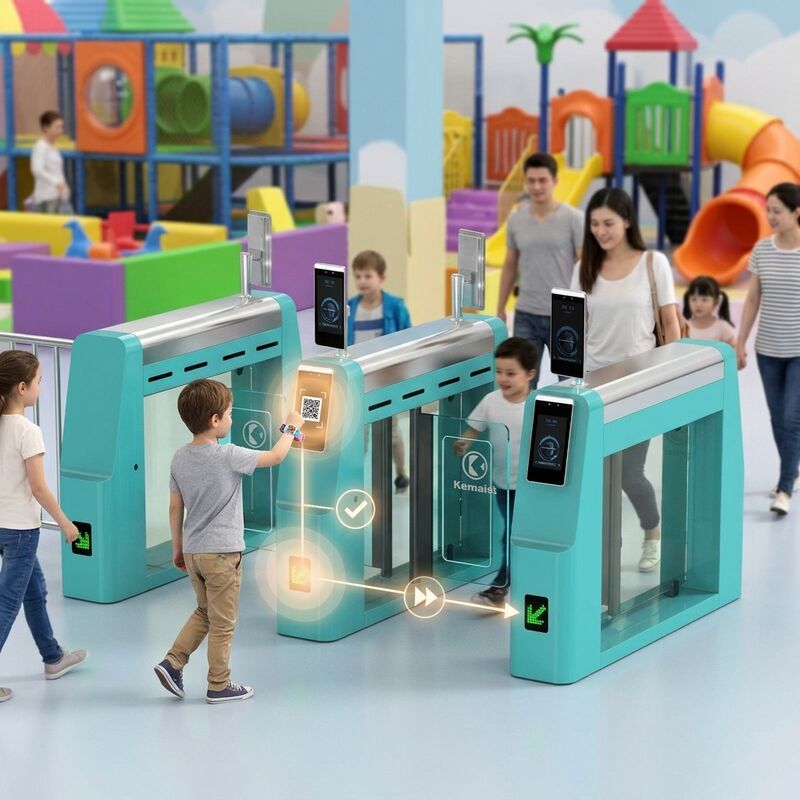

The playground entrance swing gate turnstile is a compact pedestrian access solution built for amusement parks, children playgrounds, indoor play centres, family entertainment venues and theme park entry lanes. The slim 1200*200*850mm cabinet keeps the walkway open, while the transparent acrylic swing arms and 304 stainless steel body stay sturdy under daily family traffic and look bright next to colourful playground equipment. Each lane handles 550-800mm of channel width, which suits pushchairs, families walking side by side and children moving in groups, and the 0.5 second opening plus 30-40 people per minute throughput keeps weekend and holiday queues short. The gate accepts wristband QR codes, RFID/IC/ID cards, face recognition, fingerprint and mobile NFC, so ticket, membership and day-pass systems can all drive the same lane. Anti pinch protection, 4 pairs of infrared sensors and an audible and visual tailgating alarm keep children safe while staff keep control of the entrance, and the IP43/IP54 cabinet works both indoors and in open-air playground areas from -30C to 70C.

Product Advantages

1. Designed for Playground Entrance Lanes

The 1200*200*850mm slim cabinet and 550-800mm channel suit playground gates where space is limited and visitors arrive in family groups. The low, open profile keeps sight lines clear for parents and staff, and the acrylic arms look light next to play equipment instead of forming a fence-like barrier.

2. Sturdy 304 Stainless Steel Build

The passage frame uses 304 stainless steel, with a 201 stainless steel plus baked paint option for colour matching. The cabinet weighs 40-65kg and the mechanism is rated for at least 5 million cycles, so the gate holds its shape and finish under constant family traffic, sun, rain and daily cleaning.

3. Anti Pinch Safety for Children

The swing arms stop and reverse on resistance, and the 4 pairs of infrared sensors cover the whole lane so a child walking close behind a parent is detected. The audible and visual alarm warns staff on tailgating attempts without a hard mechanical impact, which matters in venues where most visitors are families with young children.

4. Fast QR and Wristband Entry

The controller reads QR codes on printed tickets, phone screens and wristbands, plus RFID/IC/ID cards, face recognition, fingerprint and NFC. Opening takes 0.5 seconds and the lane passes 30 people per minute normally closed and 40 people per minute normally open, so ticket checking at a playground entrance does not become the bottleneck on busy weekends.

5. Simple Operation for Venue Staff

The system supports precise time control with overtime supplement tickets, self service QR code passage, real time data synchronisation, fault self diagnosis and alarm, and relay, 12V level, 12V pulse, RS485 or TCP/IP interfaces. Venue teams can connect the gate to an existing ticketing or membership platform and see entry counts without adding hardware.

Frequently Asked Questions

1. Is this swing gate turnstile suitable for a children playground entrance?

Yes. The 1200*200*850mm slim cabinet, 550-800mm channel and anti pinch arm logic are intended for playground and family entertainment entrances. The open profile keeps parents and staff able to see the lane, and the gate works both indoors and in covered outdoor playground areas.

2. How do children and families get through the gate?

Visitors can use wristband QR codes, paper or phone QR codes, RFID/IC/ID cards, face recognition, fingerprint or mobile NFC. Different credentials can be issued for day passes, memberships and accompanying adults, and each credential can carry its own valid time window.

3. What safety features protect younger visitors?

The swing arms use anti pinch protection and reverse when they meet resistance, and 4 pairs of infrared sensors watch the full lane. Tailgating triggers an audible and visual alarm for staff instead of a sudden arm impact, which keeps entry calm in family-heavy venues.

4. Can it connect to our ticketing or membership system?

Yes. The gate accepts relay switch signals, 12V level signals and 12V pulse signals with pulse width over 100ms, and supports RS485 or TCP/IP communication, so it can work with ticketing platforms, membership systems and onsite management software already in use.

5. What about capacity, installation and customisation?

A single lane passes 30 people per minute in normally closed mode and 40 people per minute in normally open mode, with a 0.5 second opening time. Cabinet size and channel width can be customised, the 40-65kg unit is anchored on a finished base, and our team can supply lane layout drawings, project pricing and technical support.

Planning a playground entrance access control project? Contact us for a free consultation, customised lane layout, factory pricing and technical support for your playground or family entertainment venue.
