Office Tower Entrance Passage Control Swing Gate Turnstile 1200mm Acrylic Arm Stainless Steel

Product Introduction

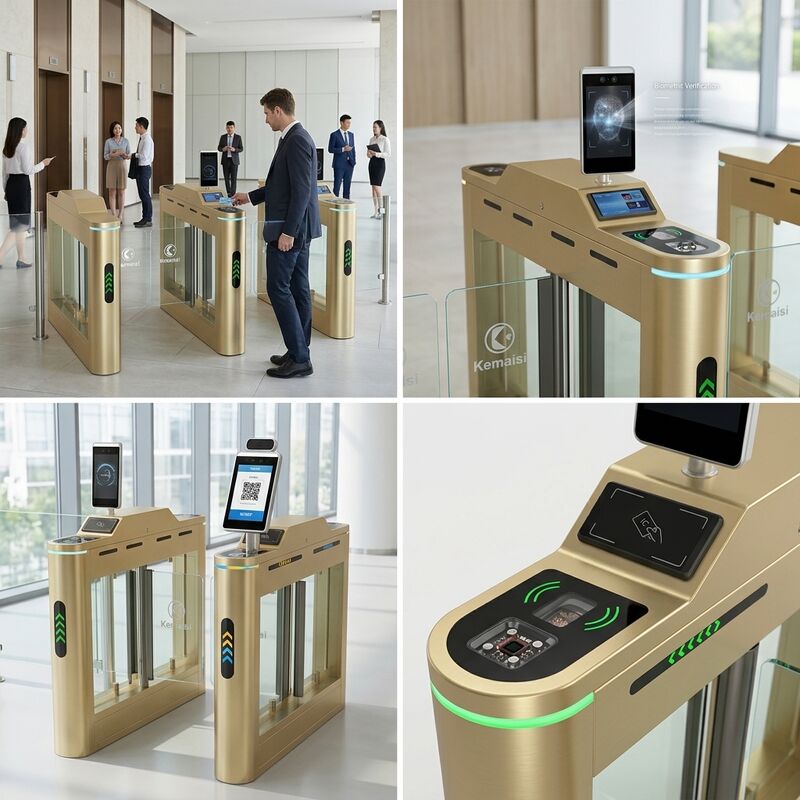

The office tower entrance passage control swing gate turnstile is a pedestrian lane built for grade A office towers, multi tenant business buildings, corporate headquarters and shared workspace lobbies where several organisations share one ground floor. It gives the property team a single passage control point in front of the lift hall: tenants pass with an IC card, face credential or phone NFC, visitors receive a QR code from the tenant they are visiting, and contractors get a time limited pass, all on the same lane. The 1200*200*1060mm stainless steel cabinet and transparent acrylic swing arms keep the lobby open and elegant, while the 550-800mm channel handles daily tenant flow and wider access for deliveries or visitors with luggage. Opening takes 0.5 seconds and one lane passes 30 people per minute normally closed and up to 40 people per minute normally open, which keeps the morning arrival window clear in front of the lifts. The controller supports RFID/IC/ID cards, QR codes, face recognition, fingerprint, mobile NFC and remote door opening, records every pass for tenant and visitor management, and reports lane status back to the property office over relay, 12V level, 12V pulse, RS485 or TCP/IP interfaces. Four pairs of infrared sensors, anti tailgating alarms and power failure release keep the entrance safe for a building that must stay open and compliant.

Product Advantages

1. One Passage Control Point for Multiple Tenants

Each tenant can hold its own credential group, visitor rule and time window on the same lane group, so the property team controls the ground floor without installing separate gates for every company. Visitor QR codes are issued by the tenant and expire automatically, which removes paper visitor books at the front desk.

2. Elegant Design for Modern Office Buildings

The slim 1200mm cabinet, clear acrylic arms and LED indicator strips suit glass curtain wall lobbies and lift halls where the entrance stays visible from the street. Stainless steel with a baked paint option allows a finish that matches the building interior rather than standing out as security hardware.

3. Fast and Smooth Tenant Flow at Peak Hours

Face or card verification with a 0.5 second arm opening lets tenants walk through without breaking stride. At 30 people per minute normally closed and 40 people per minute normally open, a bank of lanes clears the morning arrival peak and the lunchtime movement without forming a queue in front of the lifts.

4. Durable Stainless Steel Construction

The 304 stainless steel passage frame resists rust and daily cleaning, the mechanism is rated for at least 5 million cycles, and the cabinet weighs 40-65kg for stable outdoor-grade anchoring in a busy lobby. The modular layout separates control board, motor and arm so a single part can be replaced on site.

5. Intelligent Security and Building System Integration

The controller records each pass, supports anti tailgating alarms, fault self diagnosis and programmable lane modes, and reports to building management, tenant access and visitor systems over standard interfaces. Security staff see lane status and abnormal events from the control room instead of walking the lobby.

Frequently Asked Questions

1. Where can this swing gate turnstile be installed?

It is designed for office tower lobbies, lift halls, multi tenant business buildings, corporate headquarters and shared workspace entrances. The same lane can also be used at service corridors and staff entrances where passage control is needed.

2. What access methods does the turnstile support?

The lane reads RFID/IC/ID cards, QR codes, face recognition, fingerprint and mobile NFC, and it supports password entry and remote door opening from the control room. Tenants, visitors, contractors and property staff can each be given a different credential type and validity window.

3. Is the swing barrier turnstile suitable for high-traffic areas?

Yes. Opening time is 0.5 seconds and one lane passes 30 people per minute normally closed and up to 40 people per minute normally open. For a large tower, several lanes are installed side by side and the modular cabinet allows additional lanes to be added later.

4. Can this turnstile be integrated with existing security systems?

Yes. The controller provides relay switch signals, 12V level signals and 12V pulse signals with pulse width over 100ms, plus RS485 or TCP/IP communication, so it can connect to building management, tenant access control, visitor management and CCTV platforms.

5. Does the turnstile require regular maintenance?

Routine work is limited to cleaning the cabinet and arms and checking the sensors. The control board reports motor, sensor and communication faults through self diagnosis, and the modular design keeps part replacement simple for the property maintenance team.

Planning passage control for an office tower lobby? Contact us for a free consultation, customised lane layout, factory pricing and technical support for your building entrance.
