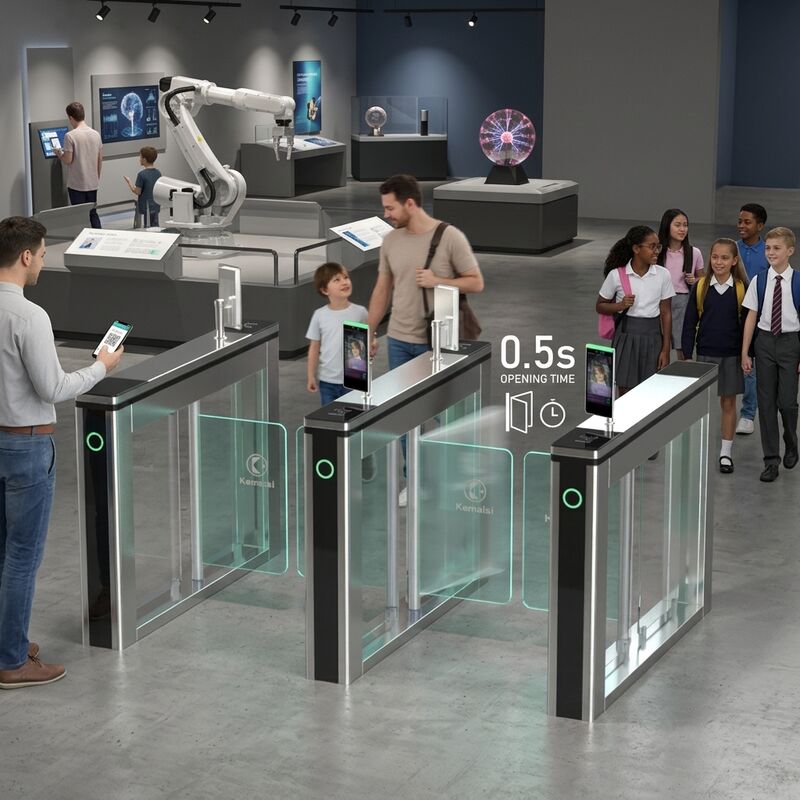

Swing Gate Turnstile Science Museum Timed Slot Entry Control System 550mm Channel

Product Description

A science museum is not a single queue at a single door. School groups arrive in batches of forty, families come with strollers, members return for a specific workshop and weekend visitors book a timed slot months ahead. Without lane-level control, the exhibition hall either overfills or the front desk spends the morning counting people by hand. This swing gate turnstile works as the entry layer of a timed-slot admission system: each booking carries a session window, and the lane only opens for a credential that matches the current session, so the hall holds exactly the number of visitors it was designed for.

Verification is fast enough for a school group to walk through without breaking formation. A dynamic QR code, ID card, membership card or face verification is checked and the acrylic swing arm opens in 0.5 seconds, clearing 30 people per minute and 40 people per minute in normally open mode. Dynamic QR codes rotate, and dual verification against the face enrolled at booking blocks screenshots, forwarded tickets and second-hand resale, which keeps the session count honest.

The cabinet suits a public exhibition environment. Brushed 304 stainless steel and the 1400mm x 180mm x 1000mm footprint sit comfortably beside interactive exhibits, the 550mm to 1000mm channel takes both schoolchildren and strollers, and the indicator lighting guides visitors without adding noise. Fault self diagnosis reports abnormal sensors or motor load before a lane blocks the entrance, and on power failure or fire signal the arms release immediately so the evacuation route stays clear.

Features and Advantages

1. Session-Based Admission Control

Each booking is tied to a time window, so the lane refuses an expired or not-yet-valid ticket. Curators can cap visitors per session and per hall instead of relying on a manual head count at the entrance, which keeps exhibit areas inside their designed capacity.

2. Group Entry at Museum Pace

Verification plus opening completes in 0.5 seconds and the lane clears 30 people per minute, 40 in normally open mode. A school group moves through in a continuous line, and teachers do not have to hand tickets to a staff member at the barrier.

3. Anti-Forgery Dual Verification

Dynamic QR codes rotate continuously and can be paired with face verification against the photo captured at booking. Screenshots, forwarded tickets and resold passes are rejected at the reader, protecting both session capacity and ticket revenue.

4. Family-Friendly Safe Passage

Four infrared sensor pairs track the channel and stop tailgating; the arm rebounds on contact instead of pushing through, and the 550mm to 1000mm channel width accepts strollers and wheelchairs. On power failure or fire alarm the arms unlock immediately for evacuation.

5. Quiet Operation and Fast Service

The brushless drive keeps noise low next to hands-on exhibits, LED indicators direct visitors without staff instructions, and built-in fault self diagnosis flags sensor or motor issues so maintenance is scheduled before a lane goes down during a school visit.

Frequently Asked Questions

Q1: Can the lane restrict entry to a booked time slot?

Yes. When connected to your reservation or ticketing platform, the credential is validated against its session window, so a visitor booked for the 10:00 session cannot pass at 14:00. Session capacity is set on the platform, not in the hardware.

Q2: How are school and group visits handled?

Groups can be issued batch QR codes or cards tied to one booking, and the lane clears 30 people per minute with 0.5 second opening. For large groups we can configure a normally open lane so the class walks through continuously under one authorisation.

Q3: Which credentials does the gate accept?

QR code, ID card, RFID/IC card, membership card, face recognition and mobile NFC, with fingerprint or password modules available. The reader module is interchangeable, so a museum can start with QR codes and add face verification later.

Q4: Can it connect to our existing ticketing or access platform?

Yes. The controller offers relay switch, 12V level and 12V pulse signals plus RS485 or TCP/IP, and we support TCP/IP, Wiegand, API and SDK integration for mainstream ticketing and access control systems.

Q5: What happens during a power failure or emergency?

The turnstile switches to fire mode, sounds the alarm and releases the swing arms immediately, so visitors can evacuate without obstruction and the installation meets fire safety requirements.
