Swing Gate Turnstile Ticket Checking System 1200mm Channel 304 Stainless Steel Acrylic Arm

Product Introduction

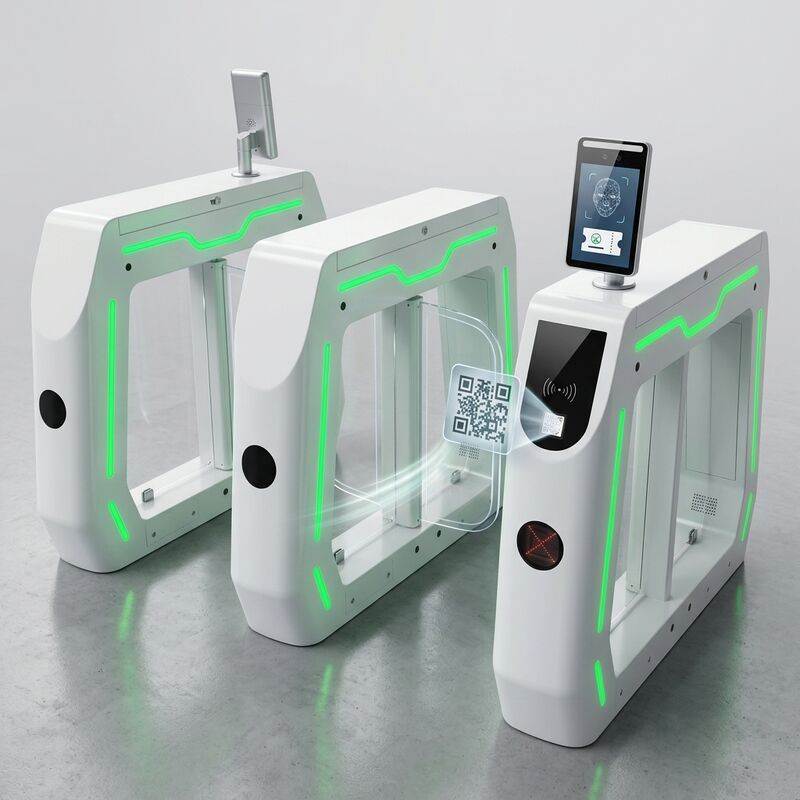

A modern attraction sells the same seat through its own website, a tour operator, an OTA app and a hotel desk, and each channel sends a different code format to the gate. This swing gate turnstile runs as the validation point of a ticket checking system: it reads QR, Code128, PDF417 and Aztec codes from a phone screen or a printed voucher, in daylight or in the dark of an evening event, and matches the code against the ticket database before the acrylic arm opens in 0.5 seconds. Timed entry is enforced at the lane, so a 10:00 slot ticket is admitted inside its window and a guest who arrives two hours early is sent to the service desk instead of joining the queue. Each slot carries a capacity cap, and the lane refuses the code once that slot is full, which keeps the headline attraction from overloading on a sold out holiday. Season passes and resident tickets are bound to a photo or a face, so a family pass cannot be passed around the car park. A refund or a date change voids the code in the database and the lane refuses it at the next scan, without a phone call to the box office. The 1200mm stainless steel cabinet with a 550-850mm channel takes a family group and a stroller, passes 30 people per minute, 40 in normally open mode, and runs at 100W on AC220V. The controller keeps the valid ticket list locally, so the lane keeps validating when the cloud or the park network drops, and the records upload afterwards for reconciliation.

Product Features & Advantages

1. Reads The Codes Every Sales Channel Sends

QR, Code128, PDF417 and Aztec codes from an OTA app, a printed voucher, a PDF on a phone or a screenshot are all read at the lane. One gate therefore serves the website, the tour operator and the hotel desk without a separate scanner per channel.

2. Timed Slots And Capacity Caps Enforced At The Arm

A ticket carries its entry slot and the lane admits it only inside that window. Each slot has a capacity cap, and the code is refused when the slot is full, so the peak of a sold out day is spread across the morning instead of concentrating at the gate.

3. Season Passes And Resident Tickets Bound To A Person

A pass can be tied to a photo, a face or an ID number, and the lane checks the person as well as the code. A family pass stops being a spare credential that gets lent to neighbours, and resident pricing stops leaking to non residents.

4. Refunds And Date Changes Void The Code On The Spot

When the box office refunds a ticket or moves it to another date, the change reaches the lane and the old code is refused at the next scan. The gate no longer has to call the office to confirm whether a voucher is still valid.

5. Group And Family Tickets In One Scan

A school group, a tour party or a family of five can be admitted on a single batch code, with the head count written against that order. Four pairs of infrared sensors still count each person through the lane, so the admission total matches the group size.

6. Validates Offline, Reconciles Afterwards

The controller stores the valid ticket list and a local signature check, so validation continues during a network or cloud outage at a remote gate. Records are buffered and uploaded on reconnect, and the arms unlock automatically on power failure or a fire alarm signal for evacuation.

Frequently Asked Questions

1. Which ticket code formats can the lane read?

QR, Code128, PDF417 and Aztec codes are read from a printed voucher, a phone screen or a PDF, and IC or ID cards and face terminals are supported on the same lane. That covers codes issued by an OTA, a tour operator and the venue's own website.

2. How is a timed entry slot enforced if a guest arrives early or late?

The slot window is part of the ticket record, and the lane admits only inside the window that the operator sets, including a grace period at both ends. An early guest is directed to the service desk or to another slot, and a late guest follows the policy the venue chooses, so the rule is consistent at every lane.

3. Can a season pass be bound to one person?

Yes. A pass can be tied to a photo, a face template or an ID number, and the lane checks the person against the pass. Family and resident passes can be limited to the registered members, which stops the borrowing that costs a venue the most in annual pass revenue.

4. What happens if the same code is scanned twice or a ticket is refunded?

The code is marked used at the first admission, so a second scan is refused and logged. A refund or date change voids the record in the ticket database, and the lane rejects the old code at the next attempt without a call to the box office.

5. Does validation still work when the ticketing cloud is offline?

The controller keeps the valid ticket list and a local signature check, so tickets are still validated during a cloud or network outage. Admission records are stored and uploaded when the connection returns, and the arms unlock on power failure or a fire alarm signal.
