Speed Gate Turnstile Visitor QR Code Reservation Security Entrance Gate Access Control

Speed Gate Turnstile Visitor QR Code Reservation Security Entrance Gate Access Control

Product Overview

This Speed Gate Turnstile is a security speed gate designed for visitor management in office buildings , technology parks , high end communities , hospitals , exhibition centres and smart campuses . In these locations the reception desk still depends on paper visitor books and temporary access cards , which slows down reception , damages the corporate image and leaves a real security gap when cards are lost , borrowed or never returned .

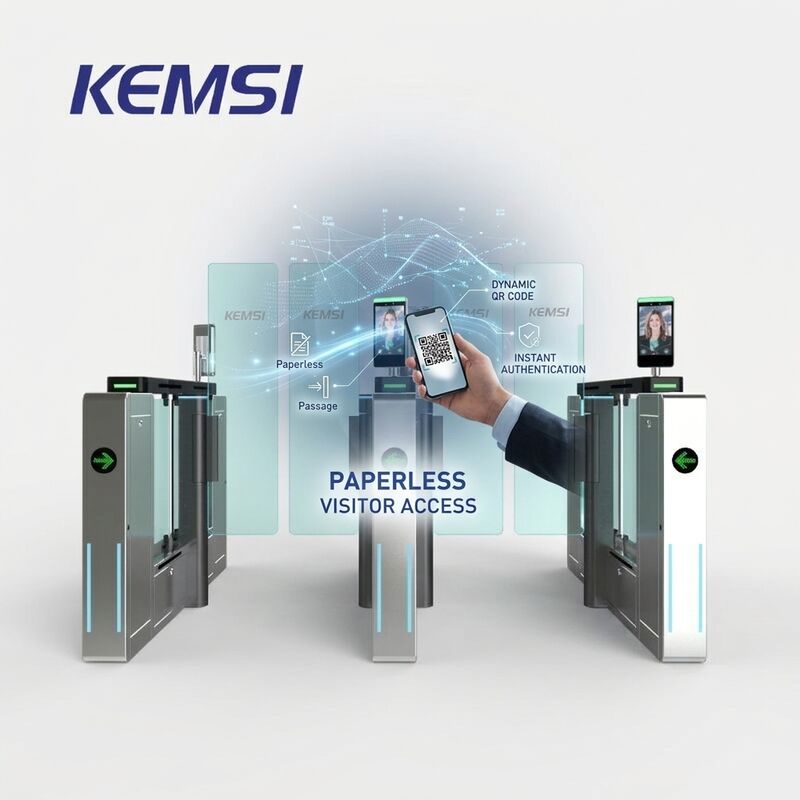

The gate works as a complete visitor QR code reservation terminal : a host sends an online invitation , the visitor receives a dynamic QR code on the phone , and scans it at the gate without stopping at the front desk . Passage rights are bound to the reserved time slot , so an expired code is rejected automatically and a visitor can never move freely through the building after the meeting ends . Regular staff and tenants use facial recognition instead of a card , which removes card replacement cost and card sharing risk entirely .

The lane is built on a 304 stainless steel frame with a 1400*150*1000mm cabinet , an acrylic swing arm and six pairs of infrared sensors . A single cabinet is 80W and opens in 0.5 seconds , handling 30 people per minute in normal mode and 40 people per minute in normally open mode , with a service life of at least 5 million cycles . The controller accepts relay , 12V level and 12V pulse signals , and communicates over RS485 or TCP/IP , so the gate can be connected to an existing visitor management platform , an access control server or a building management system .

Product Advantages

1 . Paperless visitor QR code reservation

Online invitation and dynamic QR code replace manual registration and temporary cards . The visitor passes in seconds , reception workload drops sharply , and every entry is logged digitally for later audit . Passage permission is valid only inside the reserved time slot , so expired codes are refused and unauthorised overtime stays are eliminated .

2 . Facial recognition for staff and tenants

Employees pass by face recognition without touching a card , which removes lost card cost and card sharing . The same controller can be configured for fingerprint , IC/ID card , password , second generation ID card , QR code , iris recognition , palm print recognition , mobile phone NFC and remote door opening , so one gate covers visitors , staff , contractors and VIP channels .

3 . Gentle anti-pinch protection

When the acrylic swing arm meets resistance it rebounds immediately or the motor stops , with impact force not exceeding 2 Kg , which protects children , elderly visitors and people carrying luggage or equipment .

4 . Audible and visual alarm with anti-crash locking

Unauthorised entry , forced pushing or tailgating triggers an immediate audible and visual alarm , while the swing arm stays locked whenever no opening signal is received , so the lane cannot be pushed open by hand .

5 . Automatic reset against misuse

If nobody passes within 10 seconds after the gate opens , the permission is cancelled automatically and verification is required again , which prevents a single authorisation from being reused for tailgating .

6 . Fast , quiet and durable drive

The 80W brushless drive opens the lane in 0.5 seconds with low noise , the passage frame is available in 304 stainless steel or 201 stainless steel with baked paint , and the mechanism is rated for at least 5 million cycles . Protection grade IP43 and IP54 with an ambient range of -30 C to 70 C allows indoor and outdoor installation .

7 . Flexible channel and integration

Channel width is adjustable from 600mm to 1500mm and cabinet size can be customised , while RS485 or TCP/IP output lets the gate report every passage event to a visitor system , an access control platform or a building management system .

Technical Specifications

FAQ

1 . What is the minimum order quantity of this speed gate turnstile ?

The minimum order quantity is 1 pcs , so a single lane can be ordered for a pilot project or a sample installation before a full rollout .

2 . Can the gate be connected to our own visitor management system ?

Yes . The controller accepts relay switch signals , 12V level signals and 12V pulse signals with a pulse width above 100ms , and supports RS485 or TCP/IP communication , so it can be integrated with a third party visitor reservation platform , access control server or building management system .

3 . Which identification methods are supported ?

RFID , IC and ID cards , facial recognition , iris recognition , fingerprint , QR code , password , mobile phone NFC and remote door opening . The methods can be combined per lane and per time schedule to match different security levels .

4 . What is the delivery time and how is the gate packed ?

Stock units ship in 5 days and production orders in 5 to 14 work days . Each lane is packed in a wooden case with internal protection to survive international transport .

5 . Can the size , material and channel width be customised ?

Yes . The standard cabinet is 1400*150*1000mm with a channel width of 600-1500mm , and the frame is available in 304 stainless steel or 201 stainless steel with baked paint . Custom sizes , logo printing and colour matching are available for OEM and ODM orders .

6 . What is the warranty and after sales support ?

The drive and controller carry a 12 month warranty , the mechanism is rated for at least 5 million cycles , and spare parts plus remote technical support are available for the whole service life of the gate .
