Product Overview

This Office Building Speed Gate Turnstile is built for the daily traffic pattern of office towers , business parks and mixed use commercial buildings , where one lobby has to serve building staff , tenants from dozens of companies , contractors , delivery crews and visitors within the same morning peak . A card based lane cannot tell which company an employee belongs to , cannot stop a former employee from entering after resignation , and cannot feed attendance data back to payroll without manual export .

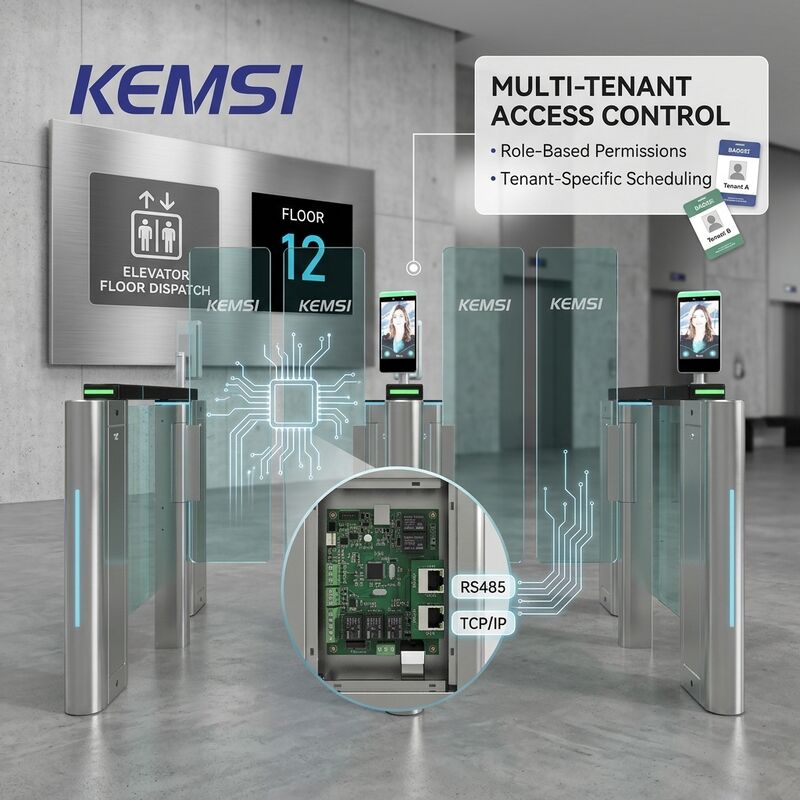

The gate works as the physical entry point of an office building system : each person is bound to a company , a floor range and a time schedule , so permissions are issued and revoked by the tenant administrator instead of the property desk . Passing the lane records clock in and clock out automatically , and the data can be exported for payroll or pushed to an HR platform through the relay , RS485 or TCP/IP interface . Facial recognition removes the card entirely , while card , QR code , password and NFC remain available for contractors and temporary staff .

The lane uses a 1300*120*1000mm cabinet in 304 stainless steel , an acrylic swing arm , six pairs of infrared sensors and an 80W drive that opens in 0.5 seconds , handling 30 people per minute in normal mode and 40 people per minute in normally open mode . The mechanism is rated for at least 5 million cycles , protection grade is IP43 or IP54 , and the operating range is -30 C to 70 C for indoor lobby or outdoor entrance installation .

Product Advantages

1 . Passage as attendance for payroll

Clock in and clock out are recorded the moment an employee passes , with no punch clock and no manual export . Attendance reports can be generated for a single tenant , a floor or the whole building in one click , which removes hours of monthly administration and eliminates buddy punching .

2 . Multi tenant permission management

Every card , face template or QR code is bound to a company , a floor range and a valid period . Property management issues the tenant administrator an account , the tenant manages its own staff , and permissions are revoked in seconds when someone leaves , so a resigned employee cannot walk back into the tower .

3 . Elevator floor linkage

After verification the controller outputs a relay or 12V signal to the lift dispatch system , so the visitor or employee is taken only to the authorised floor . This closes the common security gap where a person passes the gate legitimately and then presses any floor button in the lift .

4 . Fire alarm release and power failure protection

On a fire alarm or power failure the gate enters fire mode , sounds an alarm and opens automatically to keep the evacuation route clear , then closes and resumes normal control when power returns . The lane never becomes a bottleneck during an emergency .

5 . Gentle anti pinch protection

When the acrylic swing arm meets resistance it rebounds immediately or the motor stops , with impact force not exceeding 2 Kg , protecting employees carrying laptops , coffee or luggage during the morning peak .

6 . Fault self diagnosis and on site programming

A built in self diagnosis module raises an alarm when a sensor , motor or controller fault appears , so facility teams know which lane to service before the queue builds up . Operating mode and parameters are set on site through the keypad on the main control board , without a laptop or a service visit .

7 . Fast , quiet drive and flexible channel

The 80W brushless drive opens the lane in 0.5 seconds with low noise for a quiet lobby , the channel width is adjustable from 600mm to 1500mm , and the cabinet can be customised in size , colour and logo to match the building interior .

Technical Specifications

FAQ

1 . What is the minimum order quantity of this office building speed gate ?

The minimum order quantity is 1 pcs , which is suitable for a single lobby lane , a pilot floor or a sample order before a full building rollout .

2 . Can the gate record attendance and export it for payroll ?

Yes . Every passage is logged with time , person and direction , and reports can be exported per tenant , per floor or per building , or pushed to an HR or payroll platform through RS485 or TCP/IP .

3 . How does the multi tenant permission model work ?

Each user is bound to a company , a floor range and a valid period . The property issues an administrator account to each tenant , the tenant maintains its own staff list , and permissions can be revoked instantly when an employee leaves .

4 . Can it connect to our lift control and fire alarm system ?

Yes . The controller provides relay , 12V level and 12V pulse outputs for lift dispatch and door control , and accepts a fire alarm dry contact input that opens the lane for evacuation and restores normal mode afterwards .

5 . Which identification methods are supported ?

Facial recognition , RFID , IC and ID cards , QR code , password , mobile phone NFC , fingerprint , iris recognition and remote door opening , which can be combined per lane , per tenant and per time schedule .

6 . What is the delivery time , packing and warranty ?

Stock units ship in 5 days and production orders in 5 to 14 work days , each lane is packed in a wooden case , and the drive and controller carry a 12 month warranty with spare parts and remote technical support .
