| Brand Name: | Kemaisi |
| Model Number: | KMS-T5601 |
| MOQ: | 1 pcs |
| Price: | USD830-USD1700 |
| Delivery Time: | 5-9 work days |
| Payment Terms: | T/T |
IC ID Card Reader Speed Gate Turnstile 100W Anti Tailgating Access Control System
Product Overview
This IC ID Card Reader Speed Gate Turnstile is the card based entry lane used in office buildings , gyms , schools , factories , residential communities , subway concourses and staff canteens , where hundreds of people carry an existing IC or ID card and expect to walk through without stopping .
The lane reads proximity IC and ID cards as well as RFID tokens at the cabinet reader , returns a decision in milliseconds and opens the acrylic swing arm in 0.5 seconds , so a card holder keeps walking at normal pace instead of queuing at a turnstile . Because the reader works with the cards a site already issues , there is no need to replace an existing card estate , and the controller can be programmed per card group , per time zone and per direction .
Card reading is only half the job , so the lane is built to hold the rule . Without a valid card the arms stay locked and cannot be pushed open ; a second person walking in behind a valid card triggers the anti tailgating lock and an alarm ; an attempt to enter against the set direction is detected and refused . If the card holder does not pass within the configured time , the permission is cancelled automatically so a single read cannot be reused later in the day .
The cabinet is 1400*150*1000mm and is manufactured from 304 or 316 stainless steel with either an acrylic or a stainless steel swing arm . The 100W drive handles 25 people per minute , or 40 people per minute in normally open mode , the mechanism is rated for at least 5 million cycles , channel width is adjustable from 500mm to 1200mm , and IP43 or IP54 protection with a -30 C to 70 C range allows indoor and outdoor installation .
Product Advantages
1 . Fast IC and ID card reading
The reader accepts RFID , IC and ID cards , the decision comes back in milliseconds and the arm opens in 0.5 seconds , which keeps a lobby or gym entrance flowing at 25 people per minute without a staff member checking each card .
2 . Anti tailgating locking

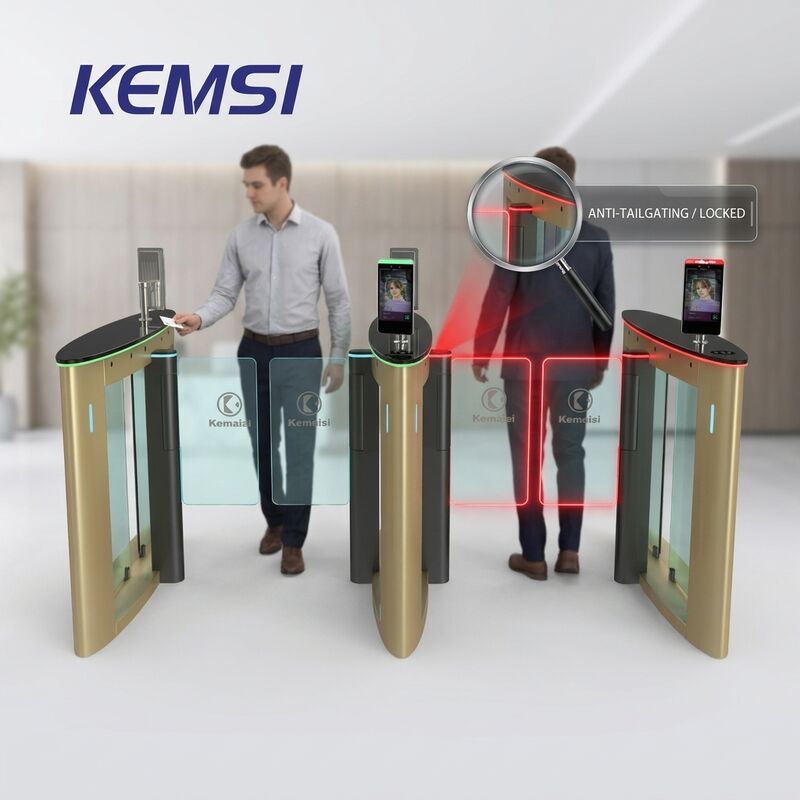

If a second person tries to force entry behind a valid card , or enters without swiping , the swing arm locks and the alarm sounds , so one card cannot admit two people during a busy morning peak .
3 . Anti breakthrough and reverse intrusion alarm
The arms stay locked until a valid opening signal is received , so the lane cannot be pushed or pulled open by hand , and any attempt to walk against the configured direction raises an audible and visual alarm .
4 . Automatic reset against card reuse
If the card holder does not pass within the configured time after a valid read , the system cancels the current permission automatically , which prevents a single swipe from being handed to another person or reused minutes later .
5 . Infrared pinch protection
Infrared sensors across the passage detect a person or a bag in the swing path and hold the arm , so a card holder is never caught by the leaf while walking through with a laptop bag or trolley .
6 . Emergency release on power failure
On power failure the optical turnstile opens automatically for free passage , keeping the escape route clear , and returns to normal card control when power is restored .
7 . Durable housing and OEM customisation
The housing is manufactured from 304 or 316 stainless steel with an acrylic or stainless steel swing arm , the channel is adjustable from 500mm to 1200mm , and OEM / ODM service covers logo printing , shape , colour and cabinet size so the lane matches the building interior .
Technical Specifications
| Product Name | Speed Gate Turnstile |
| Product size | 1400*150*1000mm (Sizes can be customized) |
| Traffic speed | 25 people/minute, normally open 40 people/minute |
| Service life | ≥5 million times |
| Channel width | 500-1200mm |
| Working voltage | AC220V±10%/50HZ 50W |
| Relative temperature | ≤95% Not condensing |
| Product power | 100W |
| Opening time | 0.5 seconds |
| Ambient temperature | -30℃-70℃ |
| Work environment | Indoor and outdoor |
| Protection grade | IP43, IP54 |
| Access control type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication interface | Relay switch signal/12V level signal/12V pulse signal with pulse width> 100ms; R$485 or TCP/IP |
FAQ
1 . What is the minimum order quantity of this IC ID card speed gate ?
The minimum order quantity is 1 pcs , suitable for a single lobby lane , a gym entrance or a pilot installation before a site wide rollout .
2 . Which cards can the reader accept ?
The standard reader accepts RFID , IC and ID cards , and the same controller can be extended with facial recognition , fingerprint , iris , QR code , password , mobile phone NFC and remote door opening when a site adds new credential types .
3 . How does the gate stop one card admitting two people ?
Without a valid card the arms stay locked , and if a second person follows a valid card the anti tailgating function locks the leaf and raises an alarm . The permission is also cancelled automatically if the card holder does not pass within the configured time .
4 . Can it work with our existing access control software ?
Yes . The controller accepts relay switch signals , 12V level signals and 12V pulse signals with a pulse width above 100ms , and supports RS485 or TCP/IP , so card events can be exchanged with an existing access control platform or building system .
5 . What happens during a power failure or an emergency ?
The turnstile opens automatically for free passage so people can leave without swiping , and it resumes normal card control once power returns .
6 . What are the delivery time , packing and warranty terms ?
Stock units ship in 5 days and production orders in 5 to 9 work days , each lane is packed in a wooden case , and the drive and controller carry a 12 month warranty with spare parts and remote technical support .
