| Brand Name: | Kemaisi |
| Model Number: | KMS-P3721 |
| MOQ: | 1 pcs |
| Price: | USD3200-USD6400 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

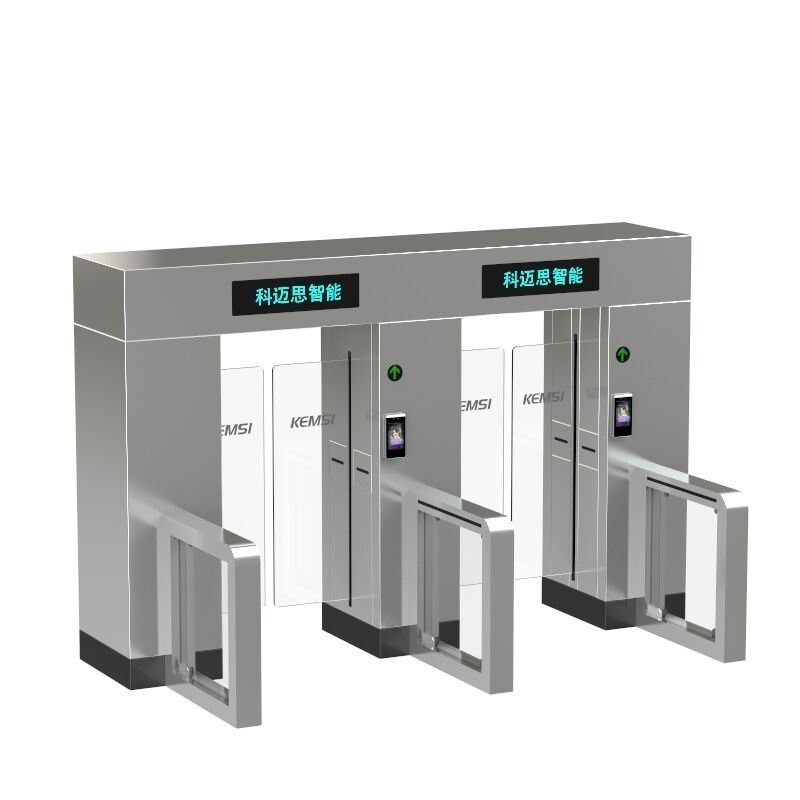

The KMS-P3721 Bridge Sliding Gate Turnstile is a high-performance pedestrian access control system engineered for environments requiring maximum security, efficient traffic management, and seamless integration with intelligent access technologies.
Featuring a robust bridge-style frame, motorized tempered glass barriers, and multi-device integration capabilities, the KMS-P3721 is ideal for airports, railway stations, metro systems, government buildings, smart campuses, corporate headquarters, and other high-traffic facilities.
Its modular design allows easy installation of face recognition terminals, RFID readers, QR code scanners, biometric devices, LED information displays, and access control systems, creating a complete smart entrance solution.
Unlike conventional speed gates, the KMS-P3721 features a bridge-style overhead frame that provides additional mounting space for security devices and information displays.
Powered by a precision servo motor, the tempered glass barriers provide fast and reliable access while maintaining high security.
The KMS-P3721 supports virtually every mainstream access technology.
Multiple infrared sensors monitor pedestrian movement throughout the passage.
The intelligent controller continuously detects obstacles. If an object or person is detected, the glass barriers automatically stop or reopen, protecting pedestrians and equipment.
The cabinet is manufactured from premium SUS304 stainless steel with tempered safety glass barriers.
Suitable for continuous indoor operation.
| Product Name | Sliding Turnstile |
|---|---|
| Barrier Material | Acrylic Swing Arm |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 3740mm*800mm*2400mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-1000mm |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 100W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Infrared Sensor | 6 Pairs |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
The KMS-P3721 is designed for demanding environments with high pedestrian traffic and advanced security requirements.
Users authenticate via:
The access control system verifies credentials and grants or denies access.
The tempered glass barriers slide open automatically for authorized users.
Infrared sensors monitor the passage to detect tailgating, intrusion, or reverse movement.
The barriers close immediately after passage, and all access events are stored in the management platform.
Customize the KMS-P3721 with a wide range of intelligent modules:
The KMS-P3721 Bridge Sliding Gate Turnstile is more than a pedestrian gate--it is a complete intelligent entrance management platform. Its bridge-mounted architecture enables seamless integration of multiple security and identification devices, making it an ideal solution for projects that demand both advanced functionality and a professional appearance.
Whether you're building a smart airport, upgrading a corporate headquarters, or deploying a secure government entrance, the KMS-P3721 offers scalable performance, intelligent control, and long-term reliability.
A bridge sliding gate turnstile features an overhead frame that supports additional devices such as face recognition terminals, LED displays, and access control equipment while providing secure pedestrian passage.
Yes. It is designed to accommodate face recognition systems, QR scanners, RFID readers, LED displays, cameras, and other intelligent modules.
Yes. Its high throughput, optical detection, and modular design make it ideal for transportation hubs and other high-traffic environments.
Absolutely. It supports TCP/IP, RS485, Wiegand, and API integration with access control, visitor management, ERP, MES, and building management systems.
Yes. We offer complete customization, including branding, dimensions, housing design, communication protocols, software integration, and project-specific engineering.
Looking for a reliable Bridge Sliding Gate Turnstile Manufacturer?
Contact us today for:
Our team is ready to help you design a secure, intelligent, and scalable entrance control solution for your next project.
